| Basic Information | |
| Supported CPU | Support Intel Core i7/i5/i3/Pentium/ Celeron processors in the LGA1150 package. Support Intel 4th generation multi-core processors |
| Chipset | Intel H81 Chipset |
| BIOS | UEFI BIOS |
| Form Factor | Micro-ATX (19 X 17 cm) |
| Audio | 3 x Audio jack |
| Key Features | |
| Type | DDR3 |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot |
| Memory | |
| Slots | 2 x Memory Slots |
| Supported Memory | 1066/1333/1600MHz, Supports non-ECC, un-buffered memory |
| Maximum Memory | Max. up to 8GB each |
| Graphics | |
| Graphics | Integrated Graphics Processor |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | 4 x USB 2.0 port 2 x USB 3.0 port |
| VGA (s) | 1 x VGA port |
| LAN Port (s) | Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps |
| Supported Storage | 3 x SATA, 1xM.2 supports NVME+NGFF |
| Warranty Information | |
| Warranty | 2 Year |

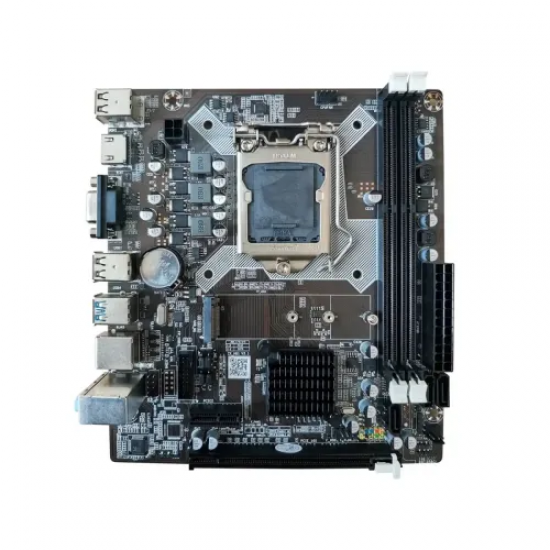

The ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard is a reliable and budget-friendly choice for building or upgrading a desktop PC. Powered by the Intel H81 chipset, it supports compatible 4th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors with an LGA1150 socket. This motherboard features two DDR3 memory slots supporting 1066MHz, 1333MHz, and 1600MHz RAM, making it suitable for everyday computing, office applications, online browsing, and educational tasks. It includes HDMI and VGA display outputs, USB 2.0 and USB 3.0 ports, three SATA connections, and an M.2 slot supporting compatible NVMe and NGFF storage devices. The integrated graphics support, onboard audio, Gigabit LAN, and PCIe x16 expansion slot provide useful connectivity for a practical desktop setup. Its compact Micro-ATX design fits compatible small and standard PC cases, making it an excellent option for affordable home and office computers. Before purchasing, verify processor, memory, and storage compatibility for your intended configuration.
