| Interface | |
| HDMI | 1 x HDMI |
| Basic Information | |
| Supported CPU | AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors |
| Chipset | A520 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |

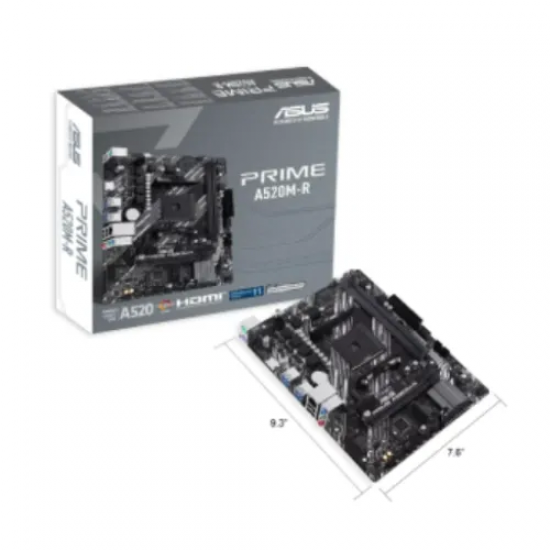

| Form Factor | micro-ATX Form Factor 9.3 inch x 7.6 inch ( 23.6 cm x 19.3 cm ) |
| Key Features | |
| Type | DDR4 |
| Expansion Slots | |
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G- Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 1 x PCIe 3.0 x1 slot |
| Memory | |
| Slots | 2 x DIMM |
| Supported Memory | DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory* Dual channel memory architecture * ECC memory (ECC mode) support varies by CPU |
| Maximum Memory | 64GB |
| Graphics | |
| Graphics | 1 x HDMI port** * Graphics specifications may vary between CPU types |
| Connector & Ports | |

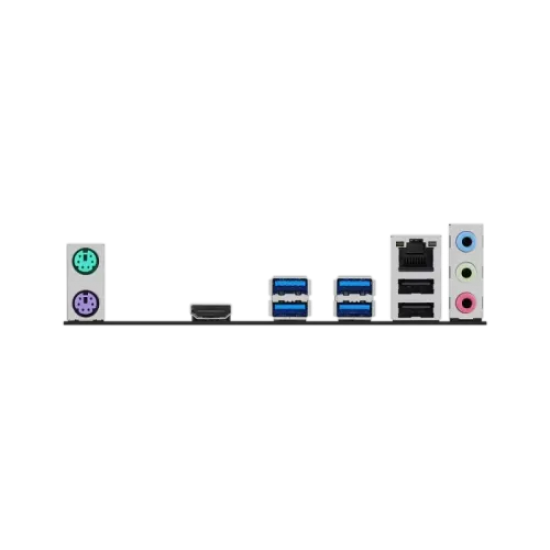

| USB (s) | Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Supported Storage | 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
| Warranty Information | |
| Warranty | 03-Year Warranty |
The Asus PRIME A520M-R AM4 Micro ATX Motherboard is designed for Bangladeshi users who want a dependable, budget-friendly, and future-ready platform for building a powerful desktop computer. Whether you are assembling a new PC for office work, freelancing, study, content creation, or entry-level gaming, this motherboard delivers excellent stability and long-term reliability. Built on the AMD A520 chipset, it supports Ryzen 5000, 4000, and 3000 series processors, making it a smart investment for users who want strong performance without overspending.
In Bangladesh, buyers often look for a motherboard that balances performance, durability, and affordability. Many users face issues such as unstable systems, overheating, or compatibility problems when choosing low-quality boards. The Asus PRIME A520M-R solves these problems with ASUS engineering quality and advanced hardware protection features. Its Micro ATX design fits easily into most casing options available in local markets, making it suitable for both compact and standard PC builds.Students, freelancers, office professionals, and casual gamers will appreciate how this motherboard delivers consistent performance while keeping total build costs under control. For users upgrading from older AMD platforms, it offers an easy transition with modern features and improved system responsiveness.
This motherboard supports AMD Socket AM4 processors including Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series CPUs. This flexibility allows users to start with a budget processor and upgrade later without changing the motherboard. For Bangladeshi buyers who gradually upgrade their PC over time, this compatibility provides excellent long-term value.The optimized power delivery system ensures stable performance during multitasking, gaming sessions, or heavy workloads such as video editing and programming. ASUS DIGI+ VRM technology maintains efficient voltage control, helping protect sensitive components and ensuring smooth system operation.
The Asus PRIME A520M-R features dual DDR4 DIMM slots supporting up to 64GB RAM with speeds reaching 5100MHz (OC). This makes it ideal for modern workloads where multitasking is essential. Running multiple browser tabs, office applications, editing software, or streaming platforms becomes significantly smoother.For students attending online classes, freelancers working with design tools, or gamers running background applications, faster memory performance translates into improved responsiveness and reduced lag.
Storage flexibility is a major requirement for Bangladeshi PC users who often combine SSDs for speed and HDDs for large storage. The motherboard includes one high-speed M.2 slot supporting PCIe 3.0 x4 and SATA modes, allowing ultra-fast boot times and quick application loading.Additionally, four SATA 6Gb/s ports enable users to connect multiple drives for media storage, backups, or business data. This combination makes the motherboard suitable for office PCs, home setups, and even small business workstations.
The board includes a PCIe 3.0 x16 slot for installing dedicated graphics cards, making it suitable for entry-level to mid-range gaming builds. Users can also add expansion cards through the PCIe x1 slot for networking, capture cards, or additional functionality.An HDMI output allows clear display connectivity, especially useful for users running Ryzen G-Series processors with integrated graphics. This feature is highly practical for office users and students who want a clean and simple setup without a dedicated GPU.
Fast and stable internet connectivity is essential for remote work, online meetings, and gaming. The integrated Realtek 1Gb Ethernet with ASUS LANGuard protection helps maintain reliable connections while protecting against electrical surges.The Realtek 7.1 Surround Sound audio system delivers immersive sound quality for movies, gaming, and multimedia use. Premium audio capacitors and dedicated PCB layers reduce noise interference, ensuring clearer sound output compared to basic motherboards.
One of the biggest concerns among Bangladeshi buyers is hardware durability due to voltage fluctuations and environmental conditions. ASUS addresses this with its 5X Protection III technology, including overvoltage protection, SafeSlot Core reinforcement, stainless-steel back I/O, and high-quality components.These features help extend hardware lifespan and reduce maintenance risks, making it a trustworthy option for users investing in a long-term PC setup.
The ASUS Q-Design system simplifies installation for beginners. Features such as Q-DIMM and Q-Slot make RAM and GPU installation easier, even for first-time PC builders. The intuitive UEFI BIOS interface allows easy configuration without advanced technical knowledge.Users purchasing from City Computer can confidently build or upgrade their systems knowing the motherboard is beginner-friendly while still offering advanced customization options for experienced users.
Thermal performance is essential in Bangladesh’s warm climate. The aluminum heatsink design and ASUS Fan Xpert software help manage temperatures efficiently. Users can customize fan profiles to balance cooling and noise levels depending on workload.This ensures stable performance during long gaming sessions, heavy workloads, or continuous office usage.
This motherboard is suitable for a wide range of users:
Because of its balanced specifications and affordable pricing, it stands out as a practical solution for Bangladesh’s budget-conscious yet performance-focused buyers. Many customers choose it from City Computer due to trusted sourcing and reliable after-sales support.
Authenticity and warranty support are major concerns when purchasing PC components online in Bangladesh. City Computer provides genuine ASUS products with official warranty coverage, ensuring peace of mind for buyers. Customers benefit from competitive pricing, trusted service, and dependable product availability.Choosing this motherboard from City Computer ensures you receive an original product suitable for long-term use, whether for personal or professional computing needs.
