| Basic Information | |
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX 200mmx236.16mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| M.2 Socket | 1 x m.2 |
| Memory | |
| Type | DDR4 |
| Slots | 1 |
| Supported Memory | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 64GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz |
| Connector & Ports | |
| HDMI | 1x HDMI 1.4 with HDR port |

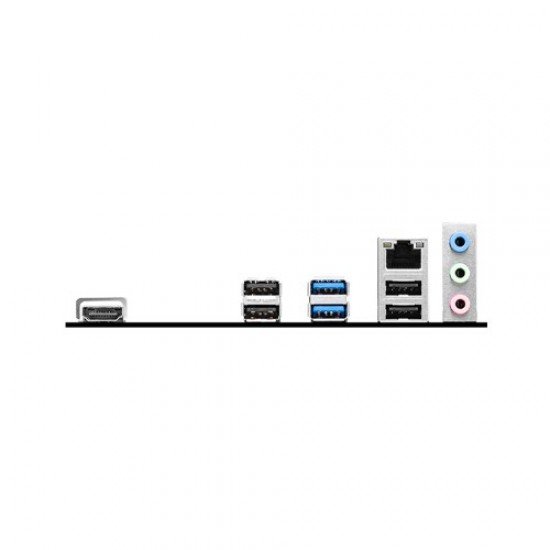

| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
| Audio | Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Warranty | 3 years |

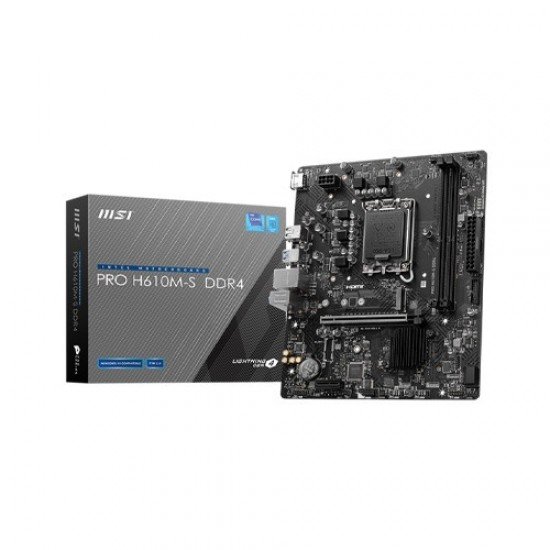

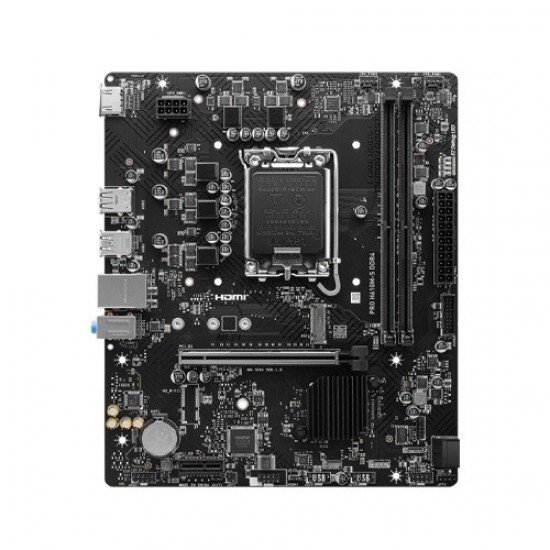

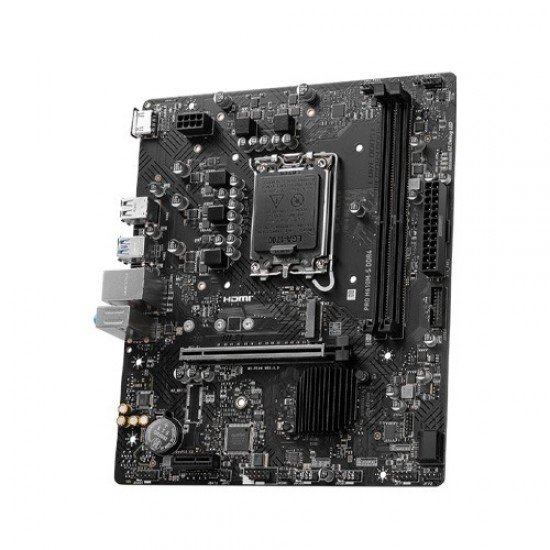

The MSI PRO H610M-S is a reliable and efficient micro-ATX motherboard designed for Intel 12th and 13th Gen processors. It offers stable performance, essential connectivity, and durability for everyday computing and business applications.
This motherboard supports Intel Core, Pentium Gold, and Celeron processors with the LGA 1700 socket. It ensures smooth multitasking and efficient performance for home and office setups.
With 2x DDR4 memory slots, it supports up to 64GB RAM, providing optimal speed and responsiveness. The board features one PCIe 4.0 x16 slot for high-speed graphics performance and one PCIe 3.0 x1 slot for additional expansion needs.
The M.2 slot supports NVMe SSDs, allowing ultra-fast storage speeds, while four SATA 6Gb/s ports enable multiple HDD/SSD configurations. Connectivity is further enhanced with USB 3.2 Gen 1 and USB 2.0 ports, ensuring seamless data transfer and device compatibility.
The motherboard includes HDMI and VGA ports, offering display support for 4K resolution at 60Hz, making it suitable for high-definition content and multiple display setups.
Equipped with Realtek ALC897 Audio Codec, it delivers 7.1-Channel HD Audio for an immersive sound experience. The Realtek RTL8111H Gigabit LAN ensures stable and high-speed internet connectivity.
Designed with MSI Core Boost and Steel Armor, this motherboard provides durability, stable power delivery, and enhanced thermal performance. The TPM module support enhances security for professional users.The MSI PRO H610M-S Intel DDR4 m-ATX Motherboard is an excellent choice for budget-friendly and efficient PC builds, ensuring reliable performance, future-ready connectivity, and durability for home and office users.
