- Stock: In Stock
- Brand: Asus
- Model: B760M-AYW WIFI D4
Key Features
- Model: B760M-AYW WIFI D4
- Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 2 x DIMM, Max. 64GB, DDR4
- Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
| Ports | |
| Slots | DDR5 |
| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel B760 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Key Features | |
| Type | DDR5 |
| Expansion Slots | |
| PCI | Intel Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots |
| Memory | |
| Supported Memory | 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/ 6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200 /5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 96GB |
| Graphics | |
| Graphics | Supports 4K@60Hz as specified in HDMITM 2.1. |
| Connector & Ports | |
| HDMI | 1 x HDMI |

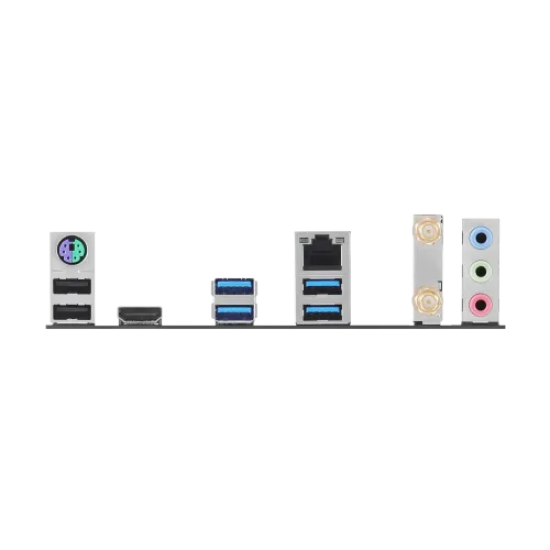

| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Wireless Communication module | Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core + - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers |
| Warranty Information | |
| Warranty | 3 years |

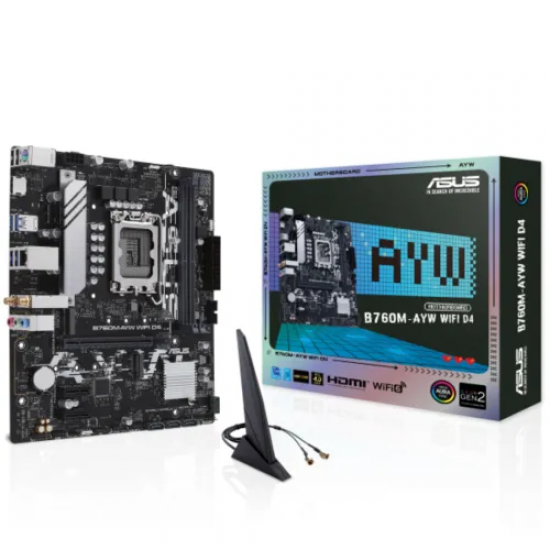

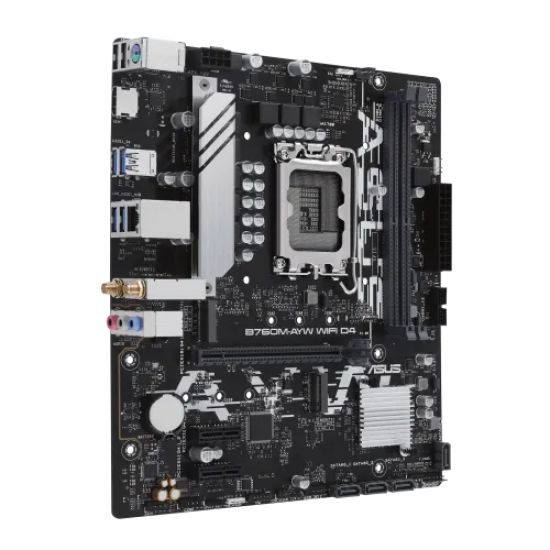

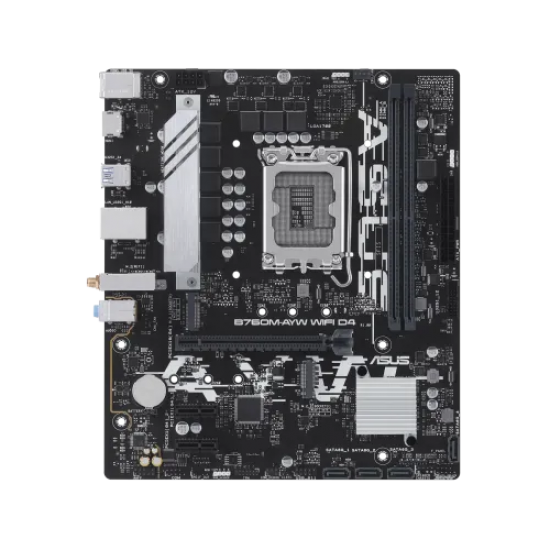

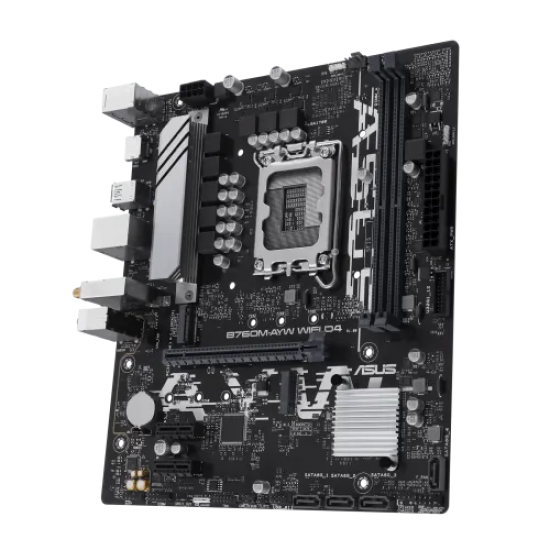

ASUS B760M-AYW WIFI D4 mATX Motherboard
The ASUS B760M-AYW WIFI D4 mATX Motherboard is designed for users in Bangladesh who want powerful performance, long-term reliability, and modern connectivity without overspending. Whether you are building a gaming PC, upgrading your office workstation, or assembling a content creation setup, this motherboard delivers a balanced combination of speed, durability, and advanced ASUS engineering.Built on the Intel B760 chipset and supporting Intel 14th, 13th, and 12th Gen processors, this motherboard ensures future-ready performance for both beginners and experienced PC builders. With Wi-Fi 6 connectivity, PCIe 4.0 support, and ASUS exclusive protection technologies, it provides excellent value for money for Bangladeshi buyers looking for stable performance and trusted hardware.
Designed for Latest Intel Processors
The motherboard features an LGA1700 socket compatible with Intel Core 14th, 13th, and 12th Gen processors, along with Pentium Gold and Celeron CPUs. This flexibility allows users to choose processors based on budget and performance needs. Students and entry-level users can start with affordable CPUs, while gamers and professionals can upgrade later without replacing the motherboard.Intel Turbo Boost Technology support ensures improved processing speed during demanding workloads such as gaming, multitasking, video editing, and programming. For Bangladeshi users who want longevity from their investment, this compatibility makes the motherboard a smart long-term choice.
High-Speed DDR4 Memory Support for Smooth Multitasking
The ASUS B760M-AYW WIFI D4 supports up to 64GB DDR4 RAM through dual DIMM slots. With memory speeds reaching up to 5333MHz (OC), users experience faster application loading, smoother multitasking, and improved gaming performance.Many PC users in Bangladesh struggle with slow systems caused by limited RAM speed or outdated motherboards. With Intel XMP support, users can easily optimize memory performance without advanced technical knowledge. This makes the motherboard suitable for beginners while still offering performance tuning options for enthusiasts.
Fast Storage Options for Modern Usage
Storage performance plays a major role in overall PC speed. This motherboard includes two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, allowing users to combine ultra-fast NVMe SSDs with traditional storage drives.Gamers benefit from faster game loading times, while office users enjoy quick file transfers and system responsiveness. Content creators working with large files will also appreciate the improved data access speed. RAID support further enhances data management and performance flexibility.

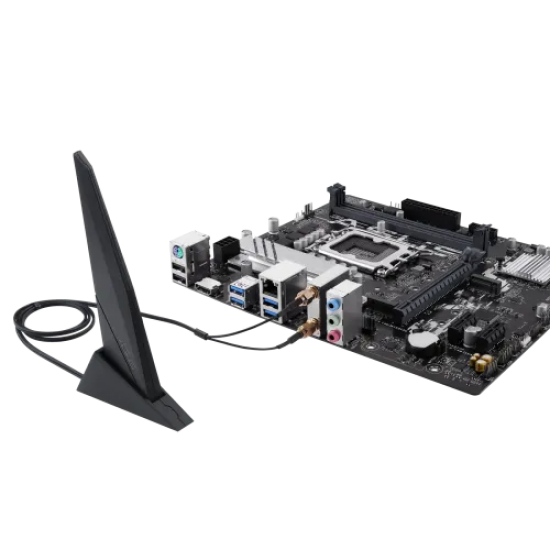

Advanced Connectivity with Wi-Fi 6 and 2.5Gb Ethernet
Internet stability is a major concern for Bangladeshi users, especially in shared homes or offices. The ASUS B760M-AYW WIFI D4 solves this with built-in Wi-Fi 6 technology, offering faster wireless speeds, lower latency, and better performance in crowded networks.Additionally, Realtek 2.5Gb Ethernet provides ultra-fast wired connectivity, ideal for online gaming, streaming, and heavy downloads. Bluetooth 5.2 support allows seamless connection with wireless keyboards, headphones, and other peripherals.Customers purchasing from https://www.citycomputer.com.bd can confidently choose this motherboard for both wireless convenience and stable wired networking performance.
PCIe 4.0 Expansion for Gaming and Upgrades
The motherboard includes a PCIe 4.0 x16 slot for modern graphics cards, ensuring excellent gaming and graphical performance. Two additional PCIe 4.0 x1 slots allow expansion cards such as capture cards, sound cards, or networking adapters.This upgrade flexibility is especially valuable for Bangladeshi users who prefer gradually upgrading their PC instead of building a completely new system.
Immersive Audio Experience
Equipped with Realtek 7.1 Surround Sound High Definition Audio, the motherboard delivers clear and immersive sound quality. Premium audio capacitors and dedicated PCB layers reduce noise interference, improving music playback, gaming audio, and movie experiences.Whether you are attending online meetings, gaming competitively, or editing multimedia content, the enhanced audio performance adds noticeable quality to everyday usage.
ASUS 5X Protection III for Long-Term Reliability
Hardware durability is extremely important in Bangladesh due to voltage fluctuations and environmental factors. ASUS integrates 5X Protection III technologies including DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and stainless-steel back I/O.These features help protect components from electrical damage and ensure long-lasting stability. Buyers from https://www.citycomputer.com.bd can rely on this motherboard for consistent performance over years of usage.
Efficient Cooling and Smart DIY Features
The VRM heatsink design and multiple fan headers ensure efficient cooling during heavy workloads. ASUS Q-Design features such as Q-DIMM, Q-Slot, and Q-LED Core simplify installation and troubleshooting, making PC building easier even for first-time users.For Bangladeshi beginners who may feel nervous assembling a PC, these smart DIY features reduce complexity and installation errors.
Customization with Aura Sync RGB
The motherboard supports Aura Sync RGB lighting through addressable Gen 2 headers and RGB connectors. Users can personalize their PC appearance according to their gaming setup or workspace theme.Using Armoury Crate software, lighting control, fan tuning, and system monitoring become simple and user-friendly. This level of customization is highly attractive for gamers and creators building visually appealing setups.
Ideal Choice for Bangladeshi Users
The ASUS B760M-AYW WIFI D4 mATX Motherboard is ideal for students, gamers, freelancers, office professionals, and content creators across Bangladesh. Its compact mATX size fits most PC cases while delivering powerful features typically found in higher-priced boards.Budget-conscious buyers benefit from DDR4 compatibility, avoiding expensive DDR5 upgrades while still enjoying excellent performance. At the same time, professionals gain reliable stability for productivity tasks.When purchased from https://www.citycomputer.com.bd, customers receive genuine products backed by manufacturer warranty, helping reduce common online shopping concerns such as authenticity and after-sales support.
Why Choose This Motherboard from citycomputer?
This motherboard balances affordability, modern connectivity, and trusted ASUS build quality. Instead of overspending on unnecessary features, users get exactly what is required for gaming, productivity, and future upgrades. It is a practical and reliable solution tailored to real-world computing needs in Bangladesh.
