| Basic Information | |
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
| Chipset | AMD A520 |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 Socket | 1 x M.2 connector |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 64 GB (32 GB single DIMM capacity) |
| Graphics | |
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.2. |
| Max Shared Memory | 16 GB |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/ 100 Mbps) |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors |
| RAID | Support for RAID 0, RAID 1, and RAID 10 |

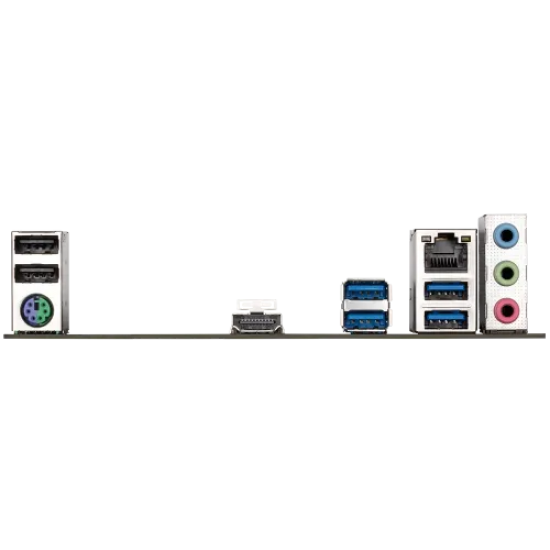

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 port 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
| Others | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Warranty Information | |
| Warranty | 03-Year Warranty |

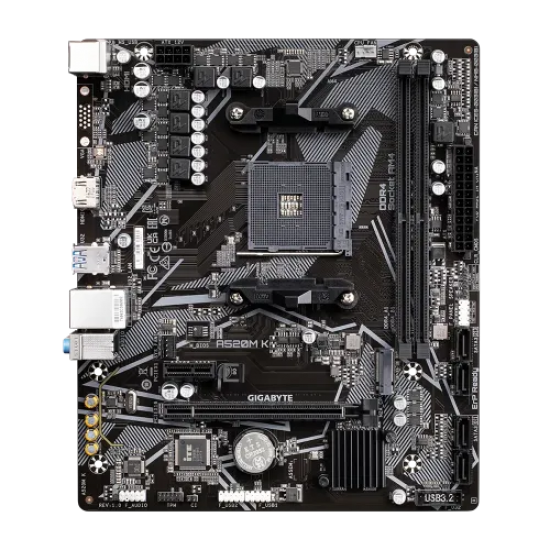

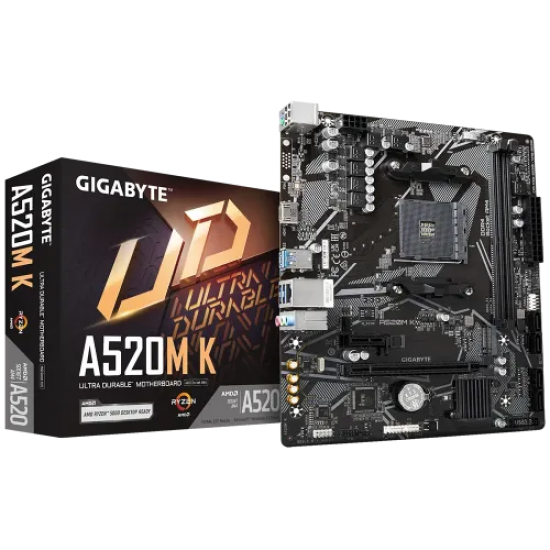

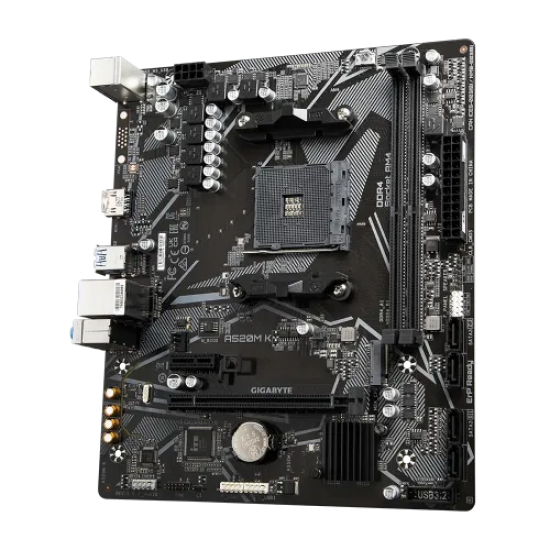

The GIGABYTE A520M K AM4 Micro ATX Motherboard delivers exceptional reliability and stable performance for everyday computing and gaming. Built with AMD’s A520 chipset, it supports Ryzen 5000, 4000, and 3000 series processors, offering a perfect balance between affordability and capability. With dual-channel DDR4 support up to 64GB, this motherboard ensures smooth multitasking and faster load times. The inclusion of PCIe 3.0 slots and an M.2 connector allows for rapid data transfer and flexible storage solutions.Its HDMI 2.0 output supports 4K resolution at 60Hz, delivering crystal-clear visuals for work and entertainment. Integrated Realtek Audio ensures immersive sound quality for gamers and creators alike. The Realtek Gigabit LAN chip enhances online connectivity with stable data transmission. Designed in a compact Micro ATX form factor, it fits easily into smaller PC builds without compromising on performance.The GIGABYTE A520M K also features intuitive BIOS settings and Smart Backup tools that make system management effortless. With Q-Flash and APP Center utilities, users can update BIOS, monitor performance, and fine-tune settings with ease. Perfect for budget gamers and content creators, it provides great value with robust features and long-term stability.
