| Basic Information | |
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 8000 & 7000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 96 GB (48 GB single DIMM capacity) |
| Graphics | |
| Graphics | Integrated Graphics Processor: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Connector & Ports | |
| HDMI | 1 x HDMI |
| D-Sub (s) | 1 x D-Sub port |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |

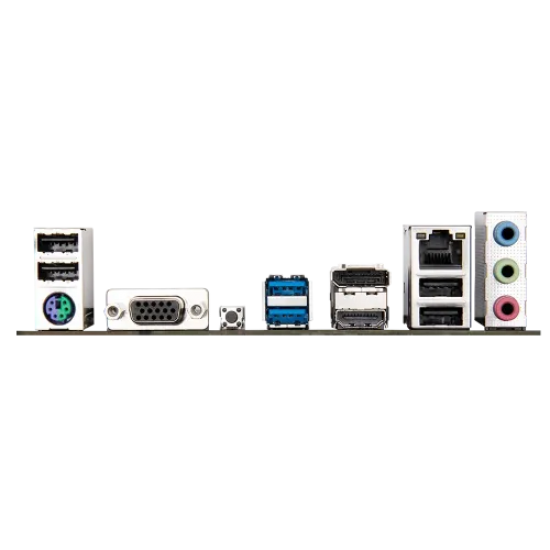

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Warranty | 3 Years |

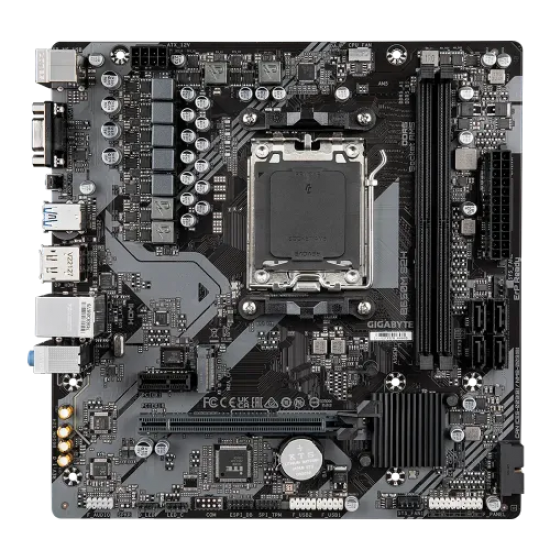

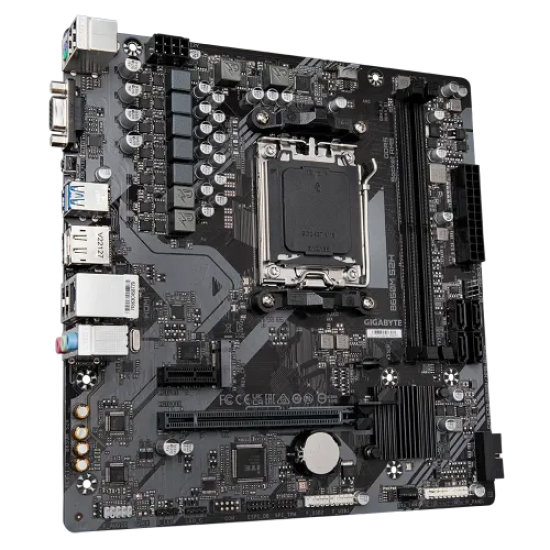

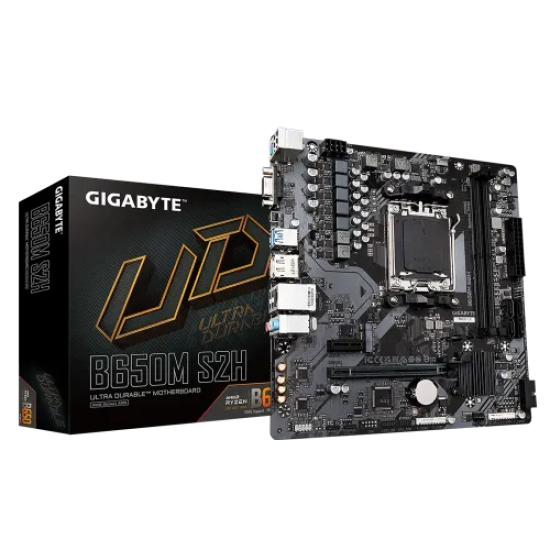

The GIGABYTE B650M S2H AM5 Micro-ATX Motherboard delivers a perfect balance of speed, reliability, and flexibility for gaming and productivity setups. Designed for AMD Ryzen 7000 and 8000 series processors, it ensures exceptional computing performance with PCIe 4.0 support, DDR5 memory compatibility, and superior connectivity. Its robust design enhances stability, while advanced BIOS support and efficient cooling make it ideal for demanding applications. With support for up to 96GB DDR5 memory and high-speed M.2 storage, this motherboard provides the power needed for smooth multitasking and next-generation gaming. The integrated Realtek GbE LAN and high-definition audio further enhance connectivity and entertainment experiences, making it a dependable choice for professionals and gamers alike.Whether you’re building a compact workstation or a gaming PC, the GIGABYTE B650M S2H AM5 Micro-ATX motherboard price in BD offers excellent value, performance, and longevity—built for modern users who demand both efficiency and reliability.
