| Basic Information | |
| Supported CPU | Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset | Intel® H81 Express Chipset |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 17.5cm |
| Memory | |
| Slots | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 2.0 standard.) |
| Supported Memory | 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096x2160 * Support for HDMI 1.4a version. Maximum shared memory of 1 GB |
| Connector & Ports | |
| USB (s) | Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 2.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3) * The M2A connector shares bandwidth with the SATA3 0 connector. The SATA3 0 connector will become unavailable when an SATA SSD is installed in the M2A connector. Refer to "2-7 Internal Connectors," "8) M2A (M.2 Socket 3 Connector)," for the installation notices for the M.2 and SATA connectors. |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header 1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x D-Sub port 1 x HDMI port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Others | |
| Special Features | Support for Q-Flash Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Warranty | 03 Years |

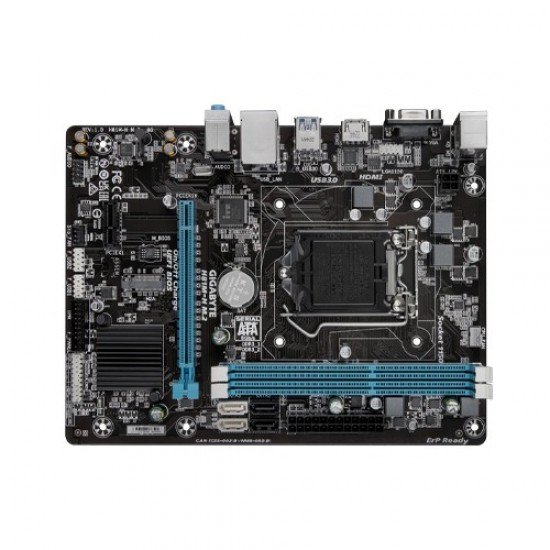

The GIGABYTE H81M-H M.2 NVME Motherboard Price in BD is designed for users seeking reliable performance and modern connectivity in a compact Micro ATX form factor. Powered by the Intel® H81 Express Chipset, it supports a wide range of Intel® processors including Core™ i7, i5, i3, Pentium®, and Celeron® in the LGA1150 package. With dual-channel DDR3 memory support up to 16 GB and Extreme Memory Profile (XMP) compatibility, this motherboard ensures smooth multitasking and efficient computing for both home and office setups.Equipped with integrated Intel® HD Graphics, it offers D-Sub and HDMI outputs supporting resolutions up to 4096x2160, providing stunning visuals for everyday tasks and multimedia. Storage flexibility is guaranteed with one M.2 connector and four SATA ports, allowing fast SSD and HDD configurations. High-speed connectivity is further enhanced with USB 3.0 ports on the back panel, multiple USB 2.0 ports, and Realtek® GbE LAN for stable internet connections.The GIGABYTE H81M-H comes with Realtek® HD Audio, delivering rich 2/4/5.1/7.1 channel sound. Hardware monitoring features help maintain system stability, while unique utilities such as Q-Flash, EasyTune, Smart Recovery 2, and ON/OFF Charge provide user-friendly BIOS and software management. Compatible with Windows 10 and 7, this motherboard combines compact design with powerful features, making it an ideal choice for upgrading or building efficient PCs.
