| Basic Information | |
| Supported CPU | Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 |
| Chipset | AMD B850 |
| BIOS | Flash BIOS Button |
| Form Factor | ATX |
| Audio | 1x Front Audio (JAUD) |
| Expansion Slots | |
| PCI | E x1 slot |
| M.2 Socket | 2x M.2 |
| Memory | |
| Type | Motherboard |
| Slots | 4 x UDIMM, 2x PCI-E x16 slot, 1x PCI-E x1 slot |
| Supported Memory | DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1x HDMI, 1x DisplayPort |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1.4 |

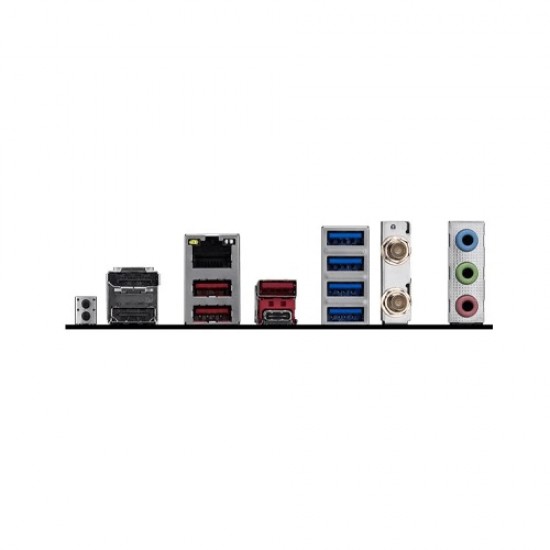

| USB (s) | 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front) |
| LAN Port (s) | Realtek 8125 2.5G LAN |
| Supported Storage | 2x M.2, 4x SATA 6G |
| Wireless Communication module | Fi 6E |
| Audio | 1x Front Audio (JAUD) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Physical Specification | |
| Dimensions (W x D x H) | 243.84mm x 304.8mm |
| Warranty Information | |
| Warranty | 3 Years Warranty |

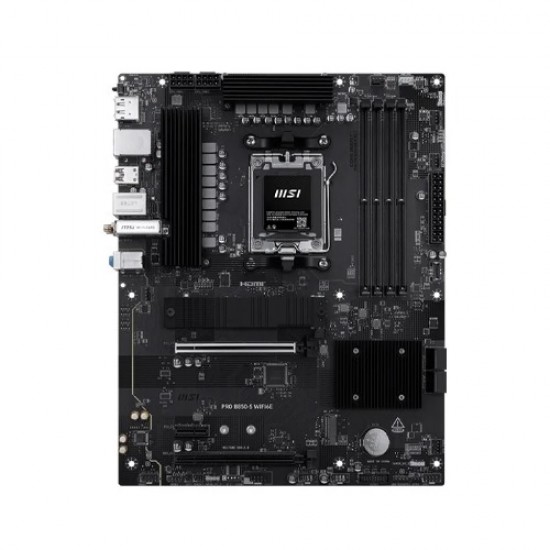

The MSI PRO B850-S WIFI6E AM5 ATX Motherboard is designed for performance enthusiasts and professionals alike, providing a robust platform for the latest Ryzen processors. This motherboard supports the Ryzen 9000, 8000, and 7000 series processors, ensuring compatibility with the most powerful CPUs available. With its ATX form factor, it offers ample space for expansion and connectivity, making it an ideal choice for gamers, content creators, and anyone looking to build a high-performance PC. The motherboard features a sleek design with a focus on durability and reliability, ensuring that your system runs smoothly under heavy workloads. The inclusion of advanced features such as Wi-Fi 6E technology allows for faster wireless connections, while multiple M.2 slots enable lightning-fast storage options. Whether you are upgrading your existing setup or building a new one from scratch, the MSI PRO B850-S WIFI6E AM5 ATX Motherboard provides the foundation you need for a powerful and efficient computing experience.
The MSI PRO B850-S WIFI6E AM5 ATX Motherboard is built to maximize the potential of AMD's Ryzen processors. With support for the latest Ryzen 9000, 8000, and 7000 series CPUs, users can experience unparalleled performance in gaming, content creation, and multitasking. The motherboard's advanced architecture allows for efficient power delivery and thermal management, ensuring that your CPU operates at peak performance without overheating. This is particularly beneficial for gamers who demand high frame rates and low latency, as well as professionals who require reliable performance for demanding applications. By choosing this motherboard, you are investing in a platform that will not only meet your current needs but also adapt to future advancements in technology.
In today's digital age, fast and reliable internet connectivity is essential. The MSI PRO B850-S WIFI6E AM5 ATX Motherboard features integrated Wi-Fi 6E technology, which offers significantly improved speeds and reduced latency compared to previous Wi-Fi standards. This is particularly advantageous for gamers and streamers who require stable connections for online play and content delivery. With support for multiple frequency bands (2.4GHz, 5GHz, and 6GHz), users can enjoy seamless connectivity even in crowded environments. Additionally, the inclusion of a 2.5G LAN port ensures that wired connections are equally fast, making this motherboard a versatile choice for any networking scenario.
Storage is a critical component of any computer system, and the MSI PRO B850-S WIFI6E AM5 ATX Motherboard excels in this area. With two M.2 slots supporting PCIe 5.0 and PCIe 4.0, users can take advantage of the latest NVMe SSDs for lightning-fast data access and transfer speeds. This is especially beneficial for tasks that require high-speed storage, such as video editing and gaming. Additionally, the four SATA ports provide ample space for traditional hard drives and SSDs, allowing users to create a customized storage solution that meets their needs. Whether you are looking to maximize speed or capacity, this motherboard has you covered.
For gamers and multimedia enthusiasts, audio quality is just as important as visual fidelity. The MSI PRO B850-S WIFI6E AM5 ATX Motherboard features Realtek ALC897 7.1-Channel High Definition Audio, delivering rich and immersive sound for gaming, movies, and music. This high-quality audio solution ensures that users can enjoy a fully immersive experience, whether they are playing the latest AAA titles or watching their favorite films. Additionally, the motherboard's audio features are designed to minimize interference and enhance clarity, providing a superior listening experience.
Investing in the MSI PRO B850-S WIFI6E AM5 ATX Motherboard means future-proofing your PC build. With support for the latest technologies, including PCIe 5.0, DDR5 memory, and Wi-Fi 6E, this motherboard is designed to accommodate future advancements in hardware. This means that as new components are released, users can upgrade their systems without needing to replace the entire motherboard. This flexibility not only saves money in the long run but also ensures that your system remains competitive in an ever-evolving technological landscape.
The MSI PRO B850-S WIFI6E AM5 ATX Motherboard is an exceptional choice for anyone looking to build a high-performance PC. Its combination of advanced features, robust build quality, and future-proof capabilities make it a standout option in the market. Whether you are a gamer, content creator, or simply need a reliable system for everyday tasks, this motherboard provides the foundation for a powerful and efficient computing experience. With a 3-year warranty, you can purchase with confidence, knowing that you are making a smart investment in your technology.
This motherboard supports Ryzen 9000, 8000, and 7000 Series processors for Socket AM5.
Yes, the MSI PRO B850-S WIFI6E comes with integrated Wi-Fi 6E for high-speed wireless connectivity.
The MSI PRO B850-S WIFI6E AM5 ATX Motherboard comes with a 3-year manufacturing warranty.
Yes, it supports up to 256GB of DDR5 memory, allowing for extensive upgrades.
